Services Exposure¶

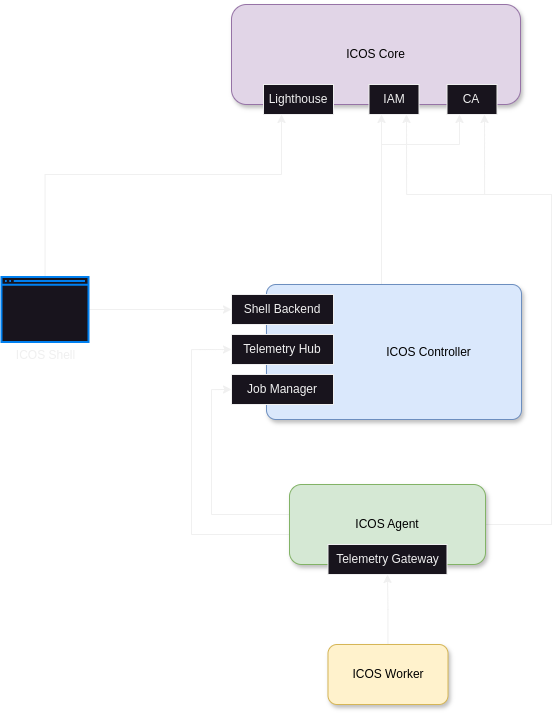

Each ICOS node (excepting for the Workers) runs multiple services that needs to be exposed to be called by other nodes. For instance, each ICOS Controller exposes the Shell Backend service that is called by the ICOS Shell CLI and the Job Manager that is called by the ICOS Agents. Similarly, the ICOS Agents expose the Telemetry Gateway service that is called by the ICOS Workers.

Exposing services publicly in Kubernetes clusters is a vast and, in some cases, complex aspect and a basic understanding of it is assumed in the rest of this section. Several resources on this topic are available online.

The decisions on how to expose services stronly depends on the configuration and the capabilities of the cluster where the node is being installed. The ICOS Suites cover the configuration for exposing the services using either and Ingress Controller or NodePort services. Other options can work, but the administrator of the cluster will have to manually configure them.

The configuration of the exposure of services in the ICOS Suites is based on two Helm values:

• url that defines a base url or IP used to derive the url/IP where each single service of the sute will be exposed
• routing that defines the method used to multiplex the different services of the suite .

The url parameter can be an ip address or a valid url with protocol (defaults to http), host (mandatory), port (defaults to 80 or 443) and path (defaults to /). Valid examples of values are:

• http://192.168.100.30/

• https://10.160.3.100:31000/

• https://my-icos-controller.com/

• http://my-icos-controller.com:31200/acme

• my-icos-controller

The routing parameter can be one of:

• host: expose each service to a different subdomain of url

• path: expose each service to a different path of url

• port: expose each service to a different port of url

Based on those two parameters the Helm templates will derivce the exact way each service of the suite will be exposed to the extern.

Routing options¶

Host Routing¶

Given the ICOS Core Suite as example, if the Helm values are:

global:
  core:
    routing: host
    # when using routing: host the url cannot be an IP address
    url: https://my-icos-core.example.org/

# enables the Nginx Ingress Controller. See the section below
icos-ingress-controller:
  enabled: true

the suite's services will be exposed at:

The name of the subdomains for each service can be customized with the global.core.ca.config.subdomain, global.core.iam.config.subdomain and global.core.lighthouse.config.subdomain values respectively.

Note that no service will be exposed at the url provided in the global.core.url value. It is used just as base url to build the urls of the other services.

Path Routing¶

Given the ICOS Core Suite as example, if the Helm values are:

global:
  core:
    routing: path
    url: https://my-icos-core.example.org/

# enables the Nginx Ingress Controller. See the section below
icos-ingress-controller:
  enabled: true

the suite's services will be exposed at:

The name of the subdomains for each service can be customized with the global.core.ca.config.path, global.core.iam.config.path and global.core.lighthouse.config.path values respectively.

Note that no service will be exposed at the url provided in the global.core.url value. It is used just as base url to build the urls of the other services.

Port Routing¶

Given the ICOS Core Suite as example, if the Helm values are:

global:
  core:
    url: 10.160.3.100
    routing: port

# Nginx Ingress Controller not needed since NodePort services will
# be used
#icos-ingress-controller:
#  enabled: true

the suite's services will be exposed at:

The name of the subdomains for each service can be customized with the global.core.ca.config.port, global.core.iam.config.port and global.core.lighthouse.config.port values respectively.

ICOS Ingress Controller¶

The host and path routing mechanisms make use of Ingress and Certificate resources. The ICOS Suites will automatically generate the appropriate resources based on the url and routing values, but an additional software to handle those resources is needed at cluster level.

In order to simplify the deployment and reduce the requirements to install the ICOS Suites, it is possible to install all the required software directly using the ICOS Ingress Controller Helm Chart (also available as dependency of each ICOS Suite Chart).

The ICOS Ingress Controller chart contains the following components:

• NGINX Ingress Controller to deploy a reverse proxy that manage the exposure of the internal services using the configuration provided through the Ingresses

• Cert Manager to autoamte the generation and renewal of TLS certificates for each service of the ICOS Suites exposed to the extern

• Step Issuer a component that creates required TLS certificates contacting the ICOS CA.

In each ICOS Suite Helm chart, it is possible to deploy the ICOS Ingress Controller with the following value:

icos-ingress-controller:
  enabled: true

The default values will use a LoadBalancer service to expose the Nginx Ingerss Controller. When using LoadBalancer service, the Nginx Ingress Controller is used on the default ports 80 and 443 (but the specific cluster configuration might be different, please check carefully).

If LoadBalancer services are not available in the cluster, it is possible to deploy the Nginx Ingress controller using a NodePort service:

# user NodePort
icos-ingress-controller:
  enabled: true
  nginx-ingress-controller:
    service:
      type: NodePort
      nodePorts:
        https: 30000

global:
  core|agent|controller:
    url: https://....:30000/  # port used in the url MUST match the port at which the ingress controller is exposed!

It is also possible to install the Nginx Ingress Controller as a Daemonset and be able to use host's port 80 and 443:

# use Daemonset
icos-ingress-controller:
  enabled: true
  nginx-ingress-controller:
    kind: DaemonSet
    daemonset:
      useHostPort: true
    service:
      type: ClusterIP

Documentation on more configuration options is available in GitHub and in the Bitnami Nginx Ingress Controller Helm chart.

global:
  controller:
    # WRONG!!! Here it is defined port 443 as the one where services are
    # exposed, but in reality they are exposed on port 32000
    url: https://my-controller.example.org/
    # CORRECT!
    url: https://my-controller.example.org:32000/

# Ingress Controller is exposed on port 32000
icos-ingress-controller:
  enabled: true
  nginx-ingress-controller:
    service:
      type: NodePort
      nodePorts:
        https: 32000

Insecure exposure with http¶

It is possible to expose the ICOS services also using the http protocol. However this is not recommended for obvious security risks.

In order to deploy an insecure ICOS Core Suite with a path routing using http, the follwoing values can be used an example:

global:
  core:
    url: my-insecure-core.com
    routing: path

# we disable the CA because it will not be needed
icos-ca:
  enabled: false

icos-ingress-controller:
  step-issuer:
    enabled: false
  cert-manager:
    enabled: false
  nginx-ingress-controller:
    config:
      ssl-redirect: "false"

icos-iam:
  keycloak:
    ingress:
      tls: false

icos-lighthouse:
  ingress:
    tls: []

In order to deploy an ICOS Controller using port routing the following values can be used as an example:

global:
  controller:
    url: 192.168.100.100
    routing: port

icos-ingress-controller:
  enabled: false
