Observability

Monitoring a large and diverse set of distributed computing resources and software generates a large amount of data of various types and may require data to be analysed, pre-processed, and aggregated if necessary, and transmitted from edge nodes / IoT devices where monitored services are deployed to locations where end-to-end services and resources management decisions are made. To prevent resource and application monitoring data from further contributing to the data overload, intelligent mechanisms are needed to automatically and dynamically decide what data to collect (i.e., what type of monitoring data to measure), the granularity of the data (i.e., what level of information to collect for a given item), and the frequency of the data (i.e., the interval between two collections for a given item).

The Logging and Telemetry is responsible for collecting and uploading telemetry reports into ICOS Shell. Such logs shall be accessible both locally from within the edge device and remotely from the ICOS Shell. This component will also support the exchange of metrics and information between the Meta-kernel and user workloads ( D2.2 ICOS Architecture and Design (IT-1) ).

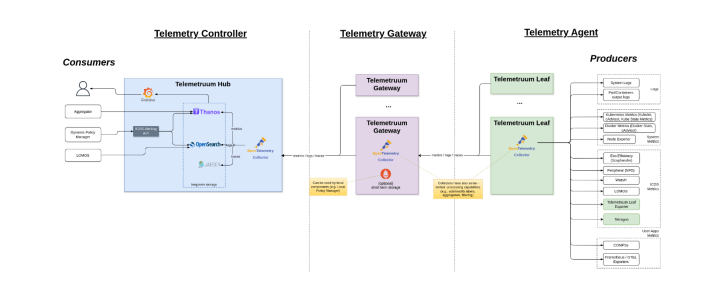

The figure highlights the main third-party technologies integrated to realize the telemetry components. With respect to the previous version presented in D3.1 1, the following new third party technologies have been used:

  • The Telemetry Gateway component has been implemented using the OpenTelemetry and Prometheus protocols and tools. This ensures a perfect compatibility and uniformity with the other telemetry components.

  • The Alerting API has been implemented using two components:

    1. Prometheus AlertManager (Apache 2.0 license) to send alerts.

    2. Prometheus-API project (MIT license) to manage alerting rules programmatically.

In order to avoid confusion and clashes with ICOS concepts and terminology (e.g., the word “Agent” is use in both contexts), a renaming of the software module has been done. In particular:

  • Telemetruum Hub is the software module that implements the Telemetry Controller architectural component.

  • Telemetruum Gateway is the software module that implements the Telemetry Gateway architectural component.

  • Telemetruum Leaf is the software module that implements the Telemetry Agent architectural component.
