Install the ICOS Worker Suite¶

The ICOS Worker Suite installs all the ICOS mandatory (and some optional) components needed for an ICOS Worker. The table below summarizes the components installed by the Suite.

Depending on the runtime platform (Docker or Kubernetes) and the orchestrator used, different installation methods are available (see below).

OCM Installation¶

The installation of the ICOS Worker SUite in a Kubernetes (or compatible) cluster is done using the ICOS Worker Suite Helm Chart.

As a prerequisite, Helm must be installed to use the chart (follow the instructions in the Helm's documentation to get started).

The Helm Chart accepts many values that can be used to customize the installation and enable/disable some features. More documentation can be found on GitHub.

Create a values.yaml file with the following values:

global:
  # Configuration of the ICOS Agent to which this Worker will join
  agent:
    routing: host
    url: https://agent.example.com/

  # ICOS CA Root Certificate (in base64 encoding). Optional, only needed if HTTPS
  # protocol is used in the ICOS Agent URL
  core:
    ca:
      bundle: LS0tLS1CR....0tLS0tCg

# Optional: specify custom labels to assign to all nodes of this Worker
telemetruum-leaf:
  telemetruum-leaf-exporter:
    staticHostsLabels:
      my_label: my_value

In particular:

• the global.agent.url and global.agent.routing values are mandatory and are needed to determin to which endpoint this ICOS Worker will register. These values can be retrieved from the ICOS Agent Suite's helm values.

Run the Helm installation command (making sure that the correct kubernetes config file is taken):

helm install --namespace icos-system --create-namespace wrk1 oci://harbor.res.eng.it/icos/helm/icos-worker --values values.yaml

oci://harbor.res.eng.it/icos-private/helm/icos-worker

helm registry login harbor.res.eng.it/icos-private/helm and provide your credentials.

If the installation was successful, a set of pod should have been started in the cluster and telemetry data for this agent should be sent to the controller and being visible in the ICOS Agent View Dashboard

> kubectl get pods -n icos-system
NAME                                                           READY   STATUS    RESTARTS   AGE
wrk1-kube-state-metrics-564bcff5b6-kc2b4                       1/1     Running   0          16h
wrk1-prometheus-node-exporter-5jhxp                            1/1     Running   0          16h
wrk1-prometheus-node-exporter-gbs5x                            1/1     Running   0          16h
wrk1-telemetruum-leaf-otel-node-agent-7wt8x                    1/1     Running   0          3h3m
wrk1-telemetruum-leaf-otel-node-agent-mknbd                    1/1     Running   0          3h2m
wrk1-telemetruum-leaf-otel-target-allocator-64bf5694dc-ghvcz   1/1     Running   0          16h
wrk1-telemetruum-leaf-telemetruum-leaf-exporter-6z6n4          1/1     Running   0          3h3m
wrk1-telemetruum-leaf-telemetruum-leaf-exporter-8qgkt          1/1     Running   0          3h3m

Nuvla Installation¶

For workers that uses the Nuvla orchestrator, the installation of the ICOS Worker Suite should be done through the Nuvla portal using the two Nuvla Apps ICOS Worker Suite - Docker or ICOS Worker Suite - Kubernetes depending on the worker runtime platform.

The procedure is the following:

1. Login to nuvla.io
2. Select Apps

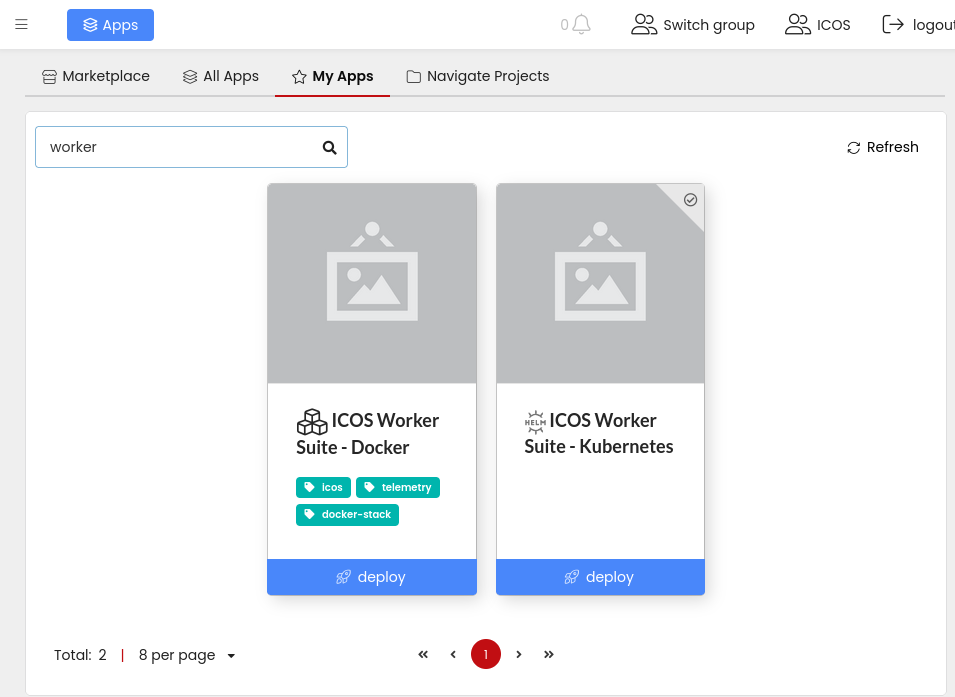

3. Select the ICOS Worker Suite - Docker or ICOS Worker Suite - Kubernetes App:

4. Deploy the App to your NuvlaEdge as provided in the NuvlaEdge User Guide

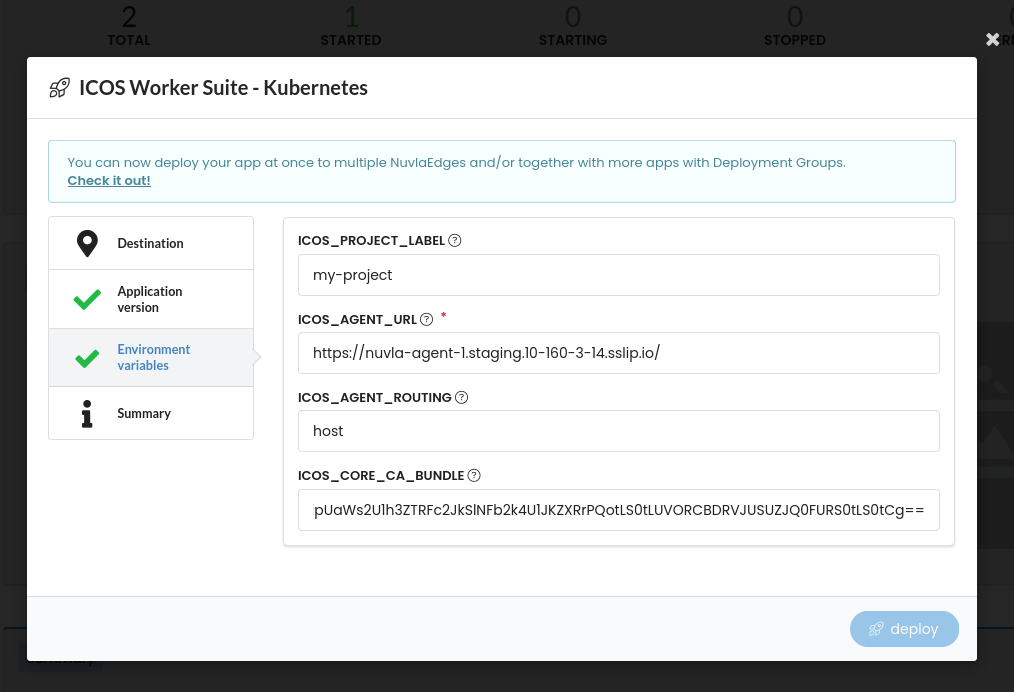

When preparing the deployment, some environment variables and configuration files need to be customized:

• for the Kuberentes app:

  Variable	Description
  ICOS_AGENT_URL	Mandatory. URL of the ICOS Agent
  ICOS_AGENT_ROUTING	Optional. Defaults to host
  ICOS_CORE_CA_BUNDLE	Optional. The ICOS CA Root Cert
  ICOS_PROJECT_LABEL	Custom value for the project labael

  Values are the same used for the OCM installation. Please refer to the OCM Section

• for the Docker app:

  Variable	Description
  ICOS_TELEMETRUUM_GATEWAY_ENDPOINT	Mandatory. The endpoint to send telemetry. This is derived from the ICOS Agent URL, but it is not the same
  ICOS_TELEMETRUUM_LEAF_EXTRA_ARGS	Optional. Additional arguments. For instance to set a label --static-host-label test_static=docker-staging

  File	Content
  extracertsbundle.pem	ICOS CA Root Cert in PEM format

Other variables are available to further customize the installation.

Customization¶

The Worker Suite instllation can be customized enabling/disabling some components or manually setting some worker properties.

Host Labels and Location¶

Temetry module will work well in most of the cases with the default configuration and will discover automatically some information on the device (e.g., ip, location, labels).

It is possible to manually override some of this data in various way described in the Host Configuration section.

Energy Consumption Metrics¶

Energy consumption metrics are disabled by default. They can be activated (if supported by device CPU) with the following value:

telemetruum-leaf:
  scaphandre:
    enabled: true|false
