Deploy the ICOS Core¶

The ICOS Core Suite deploys the three services needed to bootstrap a new ICOS Continuum:

the ICOS CA: responsible for issuing TLS certificates to all continuum services,
the ICOS Identity and Access Management (IAM) service: used to authenticate and authorize requests and users in the continuum,
the ICOS Lightouse: used to register ICOS Controllers to the system.

The ICOS Core Suite is an Helm chart that deploys and configures the three components.

The installation of a new ICOS Core is done in multiple steps because some configuration parameters are generated during the deployment itself. In particuar, in the first step the CA's Root Certificate is generated and it is used in the following steps to configure the certificates issuer component.

Warning

A full guide with more deployemnt schemas and options is available in the Developers guide.

Helm and Kuebctl commands

All Helm and Kubectl commands in this page assumes that the Kubernetes configuration of the cluster where to perform the installation is available in the default location (~/.kube/config) or specified through the KUBECONFIG env variable. Refer to the Helm Guide for more options.

In the example, the icos-core namespace and the core1 release name will be used. They can be customized if needed.

Step 1 - Install the Suite (without the Certificates Issuer)¶

In this step, the ICOS Core Suite is installed using Helm, but the Certificates Issuer component will be disabled and will be installed during the next steps.

Create a values.yaml file to sepficy how to expose the ICOS Core services (for an in-depth guide see the Services Exposure section):

global:
  core:
    url: https://core.icos-stable.10-160-3-236.sslip.io/
    routing: host

# needed if routing is "host" or "path" AND no other instances of the "icos-ingress-controller" are already installed in the cluster
icos-ingress-controller:
  enabled: true

Exposure

The values for url, routing and icos-ingress-controller must be carefully chosen since they will determin how the services of the ICOS Core will be exposed. Make sure to read carefully and fully understand the guide to these values in the Developers Guide.

In the provided example, services will be exposed using a LoadBalancer service routing the different services using DNS names.

Persistence

The default values, will also create two Kubernetes Persistent Volumes to store IAM db and CA db. They can be disabled using the following Helm values:

icos-iam:
  keycloak:
    postgresql:
      primary:
        persistence:
          enabled: false
icos-ca:
  step-certificates:
    ca:
      db:
        persistent: false

Keep in mind that disabling persistence can be dangerous because data (users and certificates database) will be lost in case of restart of the pods.

Now, run the installation command with:

helm install --namespace icos-core --create-namespace core1 oci://harbor.res.eng.it/icos/helm/icos-core --values values.yaml --set icos-ingress-controller.step-issuer.icos-issuer.enabled=false

Step 2 - Initialize the IAM Service¶

After the keycloak pod is ready, it is possible to access the Keycloak Web Administration Console from the browser to configure it. The exact URL to access the console, will depend on the url and routing Helm values chosen for the installation.

The user for Keycloak is icos-admin.

The default password for the admin user is autogenerated and can be retrieved with the following command:

kubectl get secret -n icos-core core1-iam-passwords -o jsonpath="{.data.admin-password}" | base64 -d

After the login:

Create a new realm for the ICOS Continuum (e.g. "my-icos-continuum").

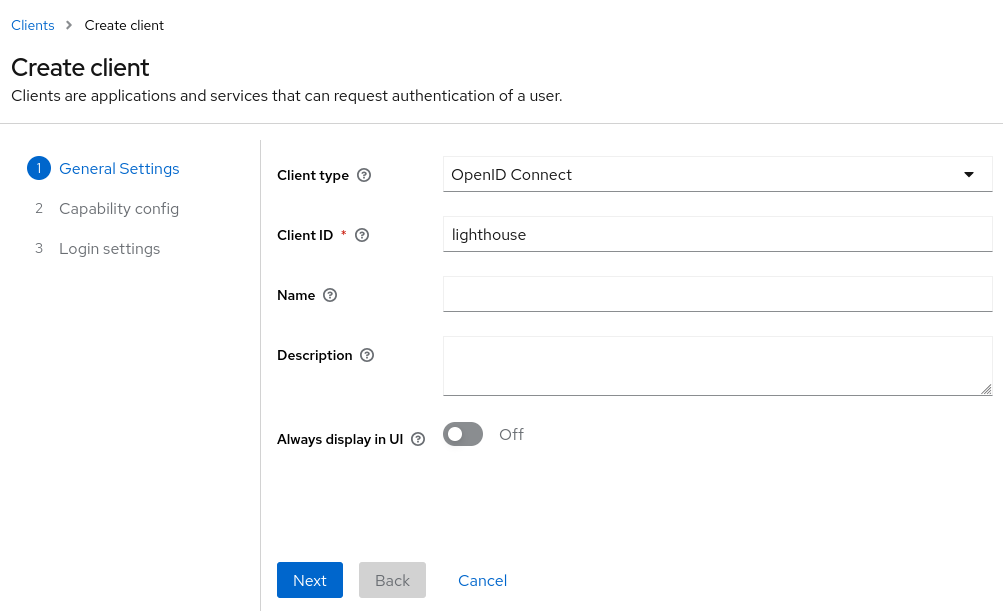

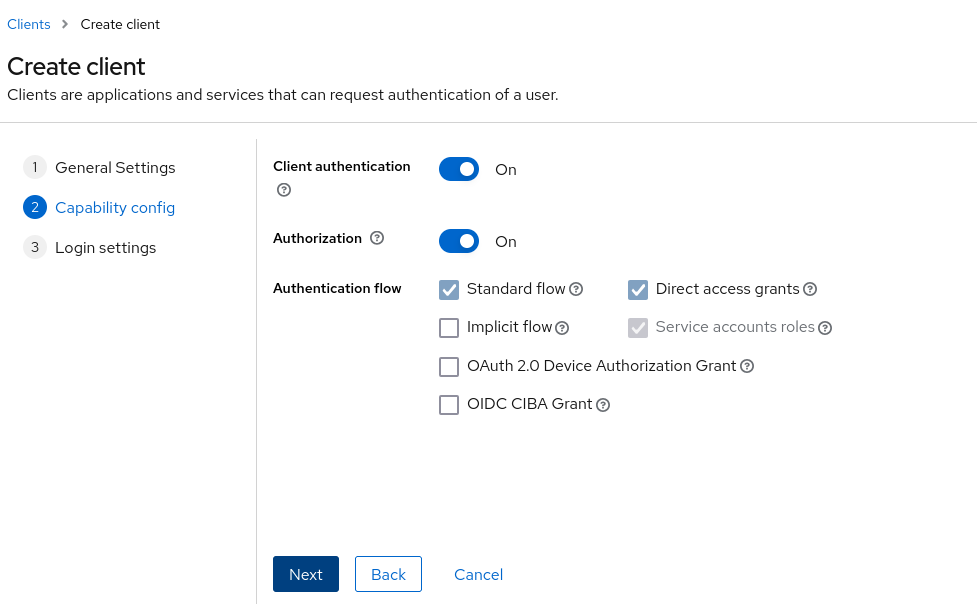

Create a new Client named lighthouse with "Client Authentication" and "Authorization" capabilities enabled.

Lighthouse Client Creation 1 — Lighthouse client creation step 1

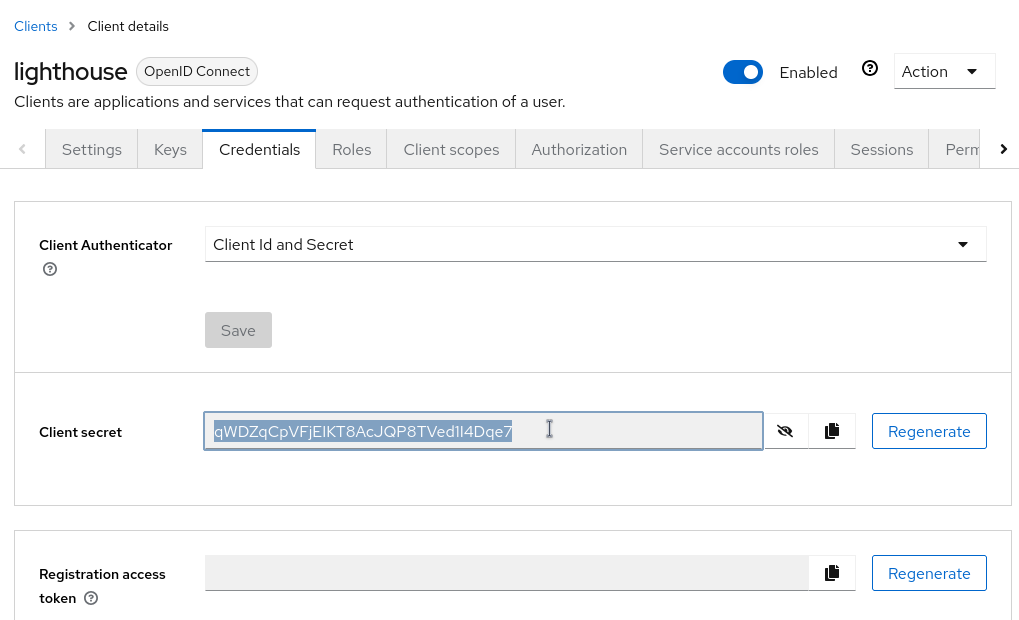

Take note of the clientSecret generated.

Step 3 - Collect CA certificates and secrets¶

Before proceeding, take note of some CA generated values:

ca bundle:

kubectl exec --namespace icos-core core1-step-certificates-0 -- sh -c "step ca root | step base64"

ca issuer kid

kubectl get configmap --namespace icos-core core1-step-certificates-config -o jsonpath="{.data['ca\.json']}" | jq .authority.provisioners[0].key.kid

ca issuer password

kubectl get secret --namespace icos-core core1-step-certificates-provisioner-password -o jsonpath='{.data.password}' | base64 --decode

Step 4 - Upgrade the Suite configuration¶

Edit the values.yaml file and add the values collected in the previous steps:

global:
  core:
    url: https://core.icos-stable.10-160-3-236.sslip.io/
    routing: host
    ca:
      bundle: <value for the "ca bundle" retrieved in previous steps>
      issuerKid: <value for the "ca issuer kid" retrieved in previous steps>
      issuerPassword: <value for the "ca issuer password" retrieved in previous steps>
    iam:
      realm: <name of the Keycloak realm created in the previous step>
    lighthouse:
      iamClientSecret: <value of the client secret for the Keycloak's "lighthouse" client created in the previous step>

# needed if routing is "host" or "path" AND no other instances of the "icos-ingress-controller" are already installed in the cluster
icos-ingress-controller:
  enabled: true

Run the helm upgrade command (with issuer enabled):

helm upgrade --namespace icos-core core1 oci://harbor.res.eng.it/icos/helm/icos-core --values values.yaml

Tip

If you get the following error:

Error: UPGRADE FAILED: resource mapping not found for name: "icos-step-ca-issuer" namespace: "" from "": no matches for kind "StepClusterIssuer" in version "certmanager.step.sm/v1beta1"

fix it by running the following and re-executing the previous command:

kubectl apply -f https://raw.githubusercontent.com/smallstep/helm-charts/refs/heads/master/step-issuer/crds/certmanager.step.sm_stepclusterissuers.yaml
kubectl apply -f https://raw.githubusercontent.com/smallstep/helm-charts/refs/heads/master/step-issuer/crds/certmanager.step.sm_stepissuers.yaml

Finally, force the re-creation of the step-issuer and lightouse pods:

kubectl delete pod --namespace icos-core -l "app.kubernetes.io/name=step-issuer"
kubectl delete pod --namespace icos-core -l "app.kubernetes.io/name=icos-lighthouse"

If the installation is successful, the following pods should be running and in Ready status:

❯ kubectl get pods -n icos-core
NAME                                                              READY   STATUS    RESTARTS   AGE
core1-cert-manager-cainjector-6bcd4d946-wr9kv                     1/1     Running   0          24h
core1-cert-manager-controller-6d8fffd985-927bw                    1/1     Running   0          24h
core1-cert-manager-webhook-584654d5-c4kxp                         1/1     Running   0          24h
core1-icos-lighthouse-b7b44b6dc-6jn2b                             1/1     Running   0          20h
core1-keycloak-0                                                  1/1     Running   0          24h
core1-nginx-ingress-controller-default-backend-5cd59c4c4b-khfmj   1/1     Running   0          24h
core1-nginx-ingress-controller-fddbd549-m87ss                     1/1     Running   0          24h
core1-postgresql-0                                                1/1     Running   0          24h
core1-step-certificates-0                                         1/1     Running   0          24h
core1-step-issuer-67578656cd-94tx2                                2/2     Running   0          24h

If the installation is working properly, after few minutes the following three certificates should have been created and in status Ready:

❯ kubectl get certificate -n icos-core
NAME                           READY   SECRET                         AGE
core1-ca-ingress-tls           True    core1-ca-ingress-tls           24h
core1-iam-ingress-tls          True    core1-iam-ingress-tls          24h
core1-lighthouse-ingress-tls   True    core1-lighthouse-ingress-tls   24h
